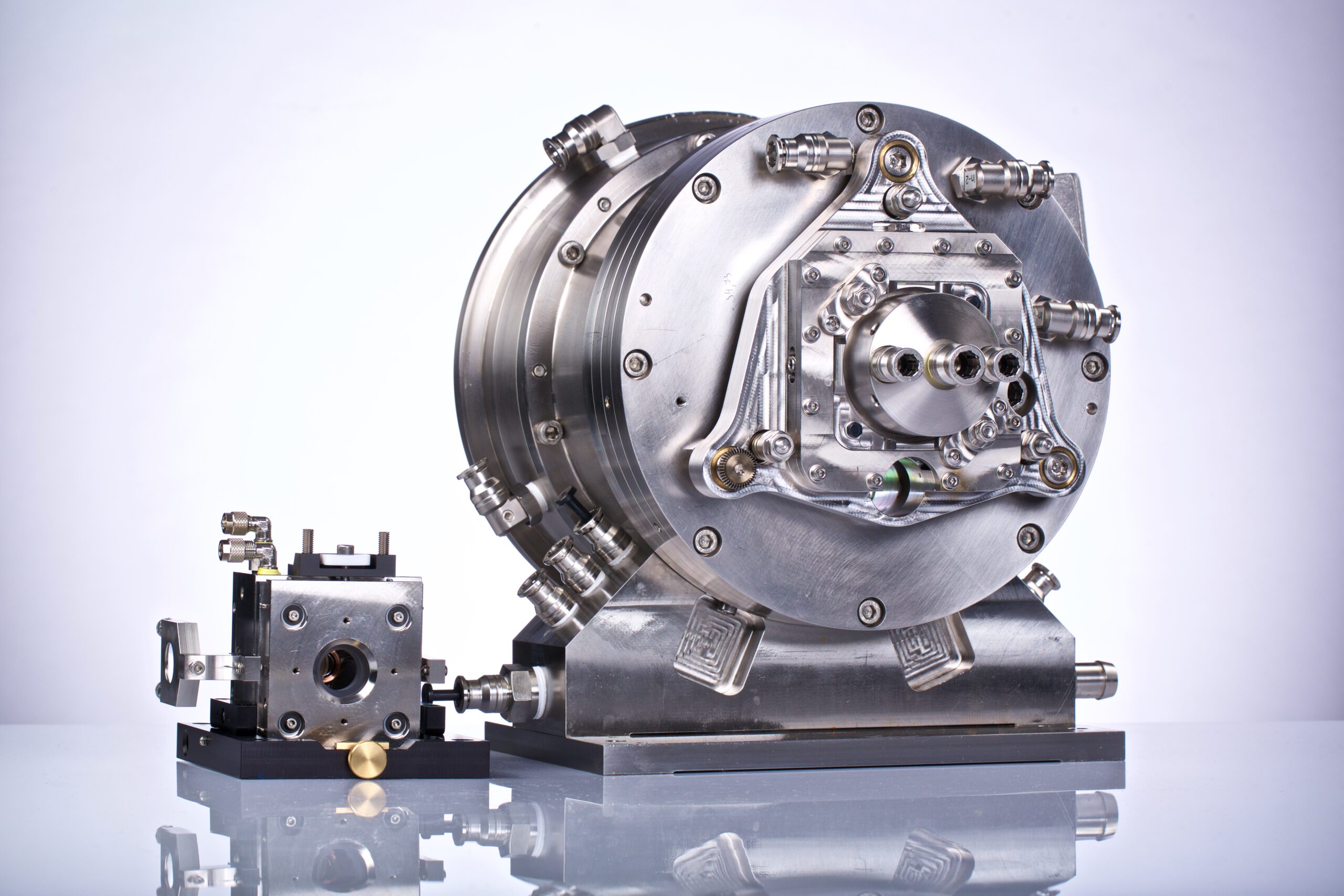

TDM 30
Thin disk pump optics for guiding up to 30 kW of pump power multiple times over a laser active thin disk medium, such as provided by our TD25 disks.
Get in touch
+49 (711) 90 70 60 – 0
Pump optics for thin disk laser media with a pump spot diameter of up to ≈20 mm,
pump chamber for 24 passes (optionally 48) of pump light (940 nm and 969 nm)
over disk maximum allowable pump power 30 kW
(Patents EP 1 252 687 & EP 1 103 090, co-inventor Dr. Giesen, licenced to D+G)
Water cooled, astigmatism-compensated and exchangeable collimation optics (not shown)
Water cooled and adjustable (angle and position) disk holder
Water cooled frame and optics, cooling channels in stainless steel for DI water
Coupling unit for up to 3 (upon request) high power fibers (e.g. HIGHYAG) (not shown)
