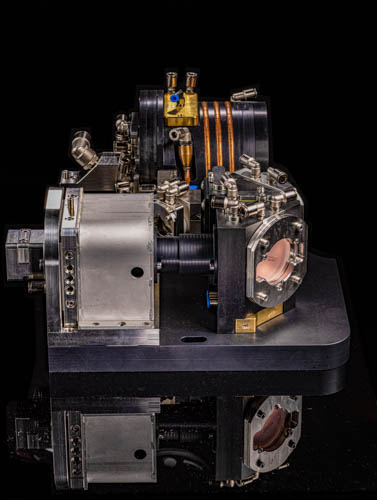

TDM 3
Thin disk pump optics for guiding up to 3 kW of pump power multiple times over a laser active thin disk medium, such as provided by our TD20 disks.
Get in touch
+49 (711) 90 70 60 – 0
Pump optics for thin disk laser media with a pump spot diameter of up to ≈20 mm,
pump chamber for 48 passes of pump light (940 nm and 969 nm)
over disk maximum allowable pump power 3 kW
(Patents EP 1 252 687 & EP 1 103 090, co-inventor Dr. Giesen, licenced to D+G)
Water cooled and except of aperture, sealed frame and optics (optionally vacuum-sealed)
Water cooled, astigmatism-compensated and exchangeable collimation optics (not shown)
Water cooled and adjustable (angle and position) disk holder
Completely enclosed beam
Mini-clean room environment: overpressure prevents dust from entering
Sensors: damage detection of optics + NTC + SHT21 + water flow rate
