TD 12-7 HD

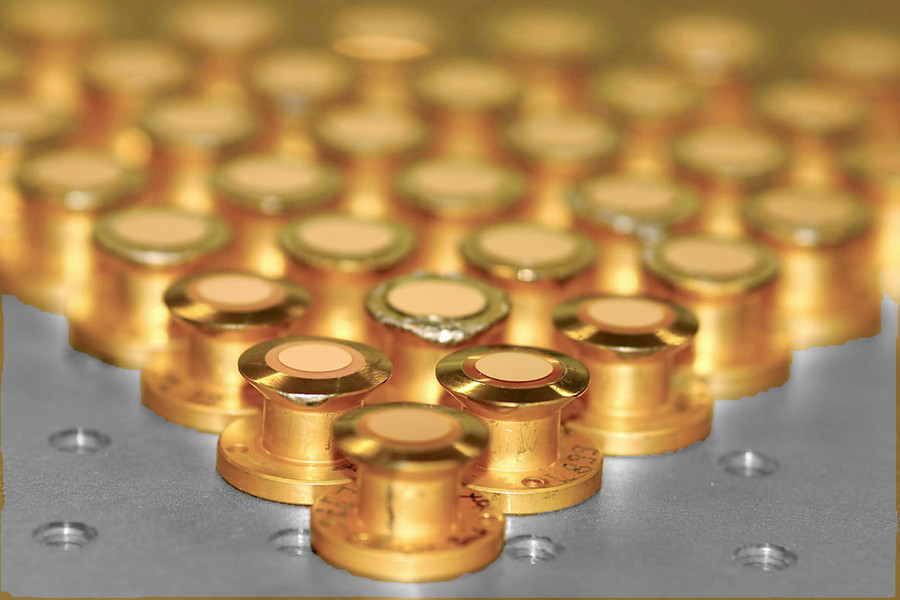

Mounting of thin laser crystals, thereby ensuring effective and homogenous cooling, is the key technology for disk lasers. For various laboratory applications as well as for the series production of our OEM customers, we offer pre-mounted disk laser crystals tailored to and tested under the customer’s specifications and/or operating conditions.

Our standard material is Yb:YAG with 7% of doping concentration. The surface is wegded in order to supress pre-pulses in pulsed operation. Outer crystal edges are beveled to avoid ASE.

Other materials and dimensions upon request.

Description

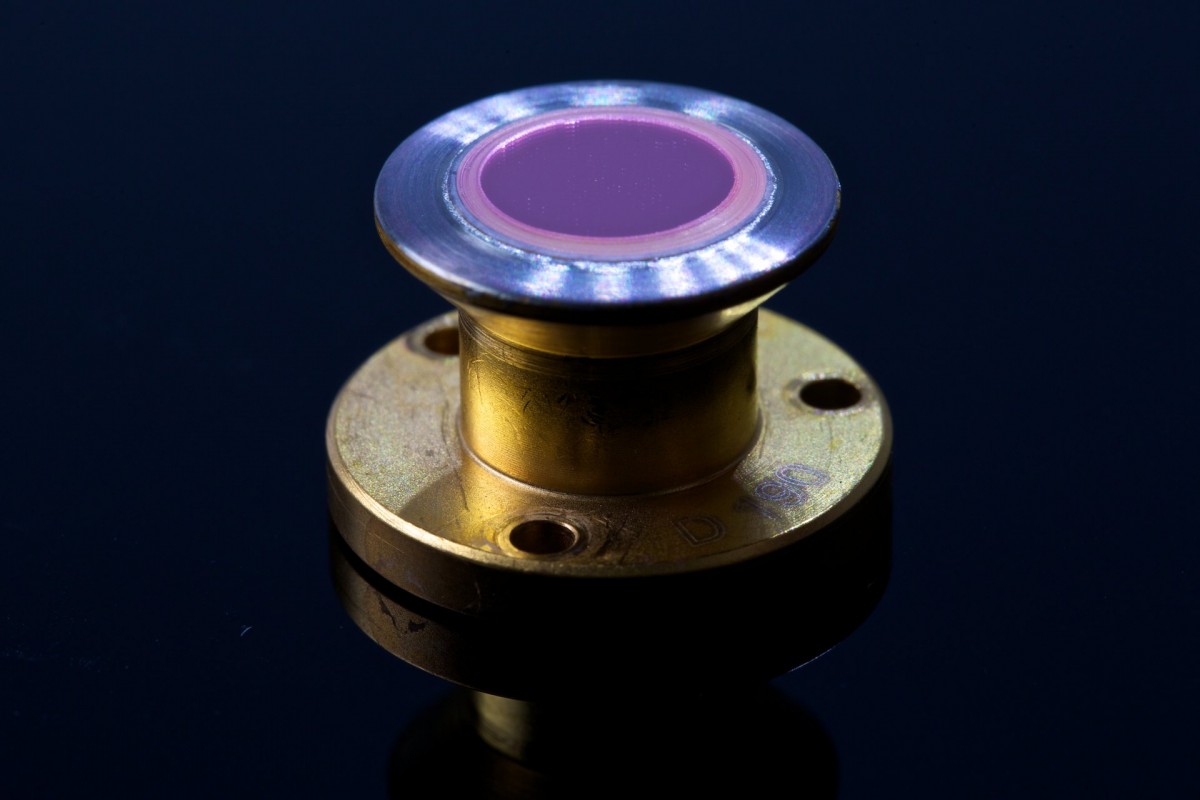

Crystal diameter 12 mm, usable free aperture 9 mm, typical thickness around 215 µm, high damage threshold (HD): TD 12-7-HD
